Combi LC09 Matrix light Introduction

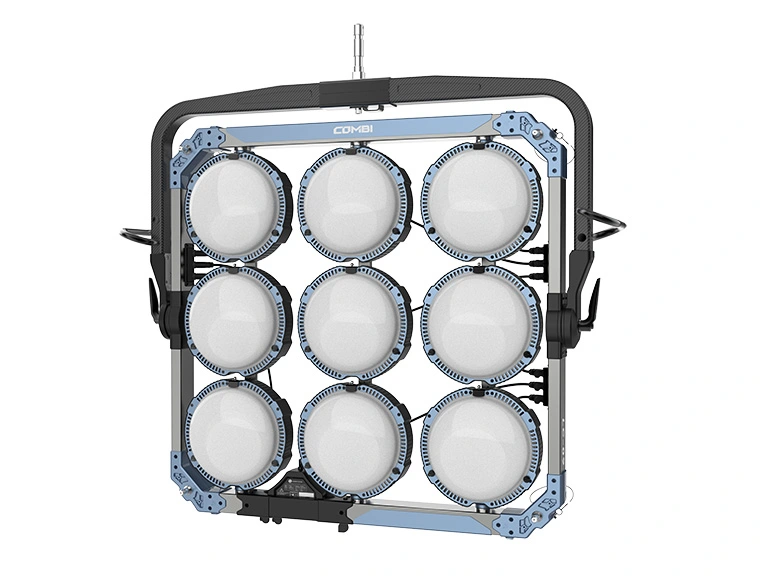

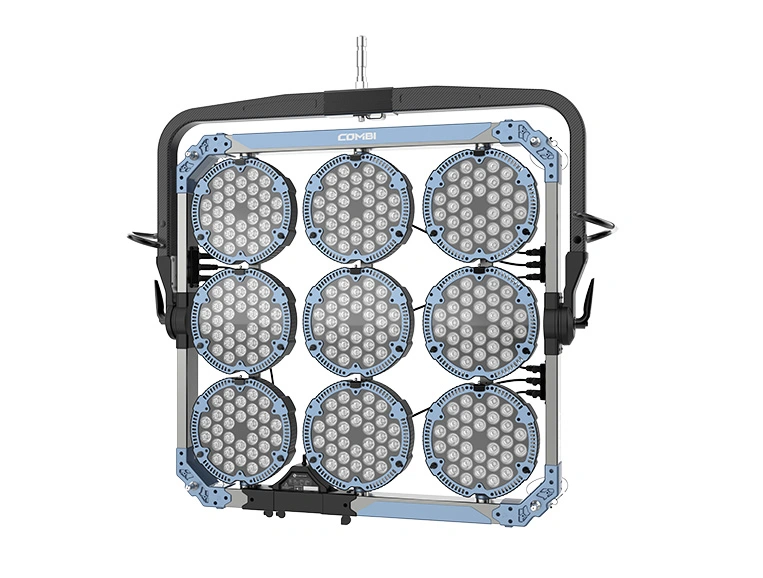

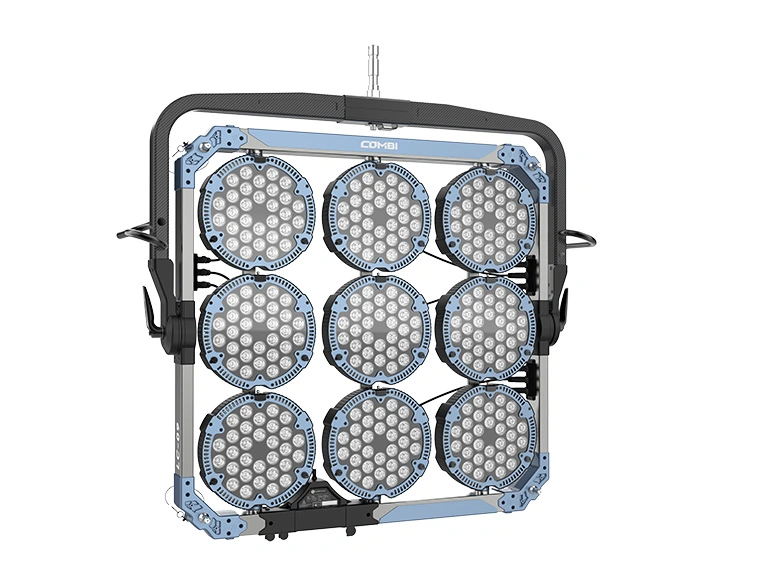

Combi LC-09 is an RGBW LED Matrix light with nine light heads. It has an rated output power of 1440 W.

Modular design, quick release

Each lamp head of a Combi LC-09 light can be easily assembled and disassembled, making it easy for replacement and maintenance.

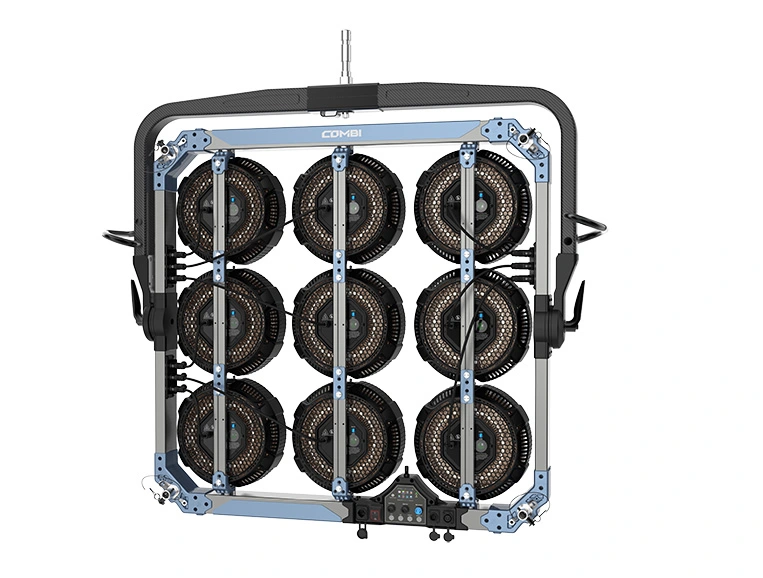

Powerful heat dissipation system

We adopt a new heat dissipation concept: Combining the sunflower-style metal fins and heat pipes, and the unique air inlet and outlet design. This greatly increase the heat dissipation performance and heat conduction efficiency of the dissipation system. Because of that, the light source's luminous efficiency, color accuracy, and long-term stability during operation can be guaranteed.

Compact and integrated design

The power supply of a Combi light is hidden into the frame, making it more convenient for mobile use. You are allowed to stack Combi Matrix lights for transportation and storage. This can help to save storage space and reduce transportation costs.

Combi LC09 Matrix light Specifications

Model	LC-09
Power	1440w
Color	RGBW
Color Rendering Index	CRI>95, TLCI >97
CCT	2000K-20000K
Dimming range	0-100%, adjustable with an accuracy of 0.1%
Control	On-board control, CRMX, APP, Wired DMX, Wireless DMX
Tilt angle	360° overall rotation, the light head can rotate 15° left and right
Dimming mode	Linear/S-curve/Exponential/Logarithmic/TV
Light Mode	CCT, HSI, X.Y, GEL, RGBW, EFFECT
Lighting effects	17
LED lifespan	50,000 hours
LED lifespan	50,000 hours
Weight(with yoke)	50.7kg
IP rating	IP54
