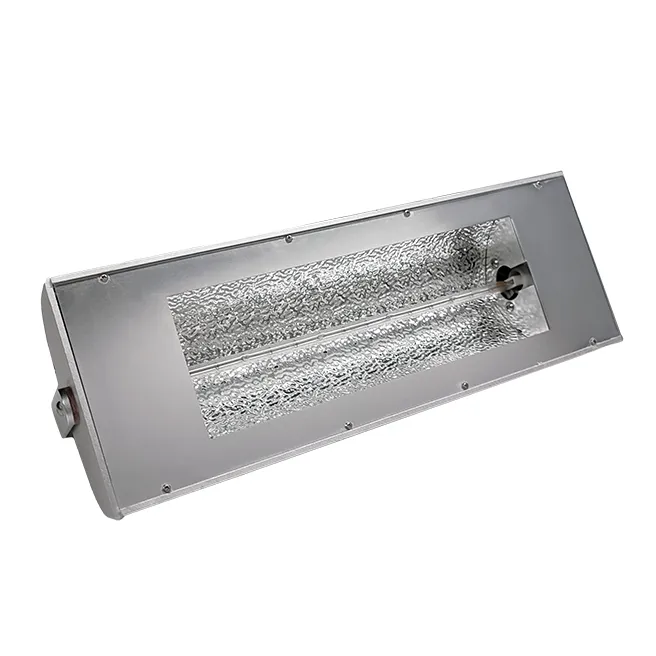

IR 2K

Infrared halogen lamps feature a broad emission spectrum (380nm~10000nm), with the main portion of spectral energy concentrated in the IR-A band (800-1400nm). The spectral distribution is shown in the figure below. IR-A provides the highest energy density and optimal efficiency for most applications.

Key Advantages:
1. 90% of the heat is available within one second (no preheating required).
2. Intensity is continuously adjustable from 0 to 100%.
3. Over 90% of the energy used is converted into infrared heat energy.
4. Long service life of up to 5,000 hours, reducing maintenance costs.
5. Emission-free, no oxygen consumption, no pollution caused by air or dust movement, and odorless.

Get a Quote

Specification of IR2000

Light source parameters
Wattage	2000W
Life	5000 h
Color Temperature	2700K
Irradiance Level	1200 W/㎡，1m above the ground
Weight	45g
Power Regulator
Input	Single-phase AC 110V / 220V / 380V / 480V (other voltages available upon request)
Control Power Supply	AC220V ±5%; 50Hz or 60Hz
Fan Power Supply	Built-in 12V DC
Output Voltage	0~98% of main circuit voltage (phase-angle control)
Load Characteristics	Pure resistive, transformer primary, variable resistive, inductive loads
Control Signal	Analog (DC4~20mA, DC1~5V, DC0~10V, etc.), potentiometer, MODBUS RTU 485
Operating Mode	Continuously adjustable
Fan Control	For models with fans, starts when heatsink temperature reaches 45°C or input signal exceeds 50%.
Start Mode	Soft start, adjustable via F11 on the control panel; default setting is 3 seconds
Constant Current Control	Keeps output current constant at the set value
Constant Voltage Control	Keeps output voltage constant at the set value
Constant Power Control	Keeps output power constant at the set value
Over-Temperature Protection	When regulator temperature exceeds 85°C, alarm contact output, red alarm indicator light (mode set by F26)
Load Break Protection	If load current falls below the set load break threshold during operation, the regulator outputs an alarm signal. If load break shutdown is enabled, output will stop
Communication	Standard RS485 communication interface, using MODBUS RTU protocol (optional)
Operating Environment	Temperature: -10°C to 55°C; Humidity: ≤90% RH (non-condensing). Avoid locations with conductive dust, metal powder, corrosive or explosive gases
Altitude	Below 1000m; derating required above 1000m
Installation	DIN rail / wall-mounted; install vertically for proper ventilation
