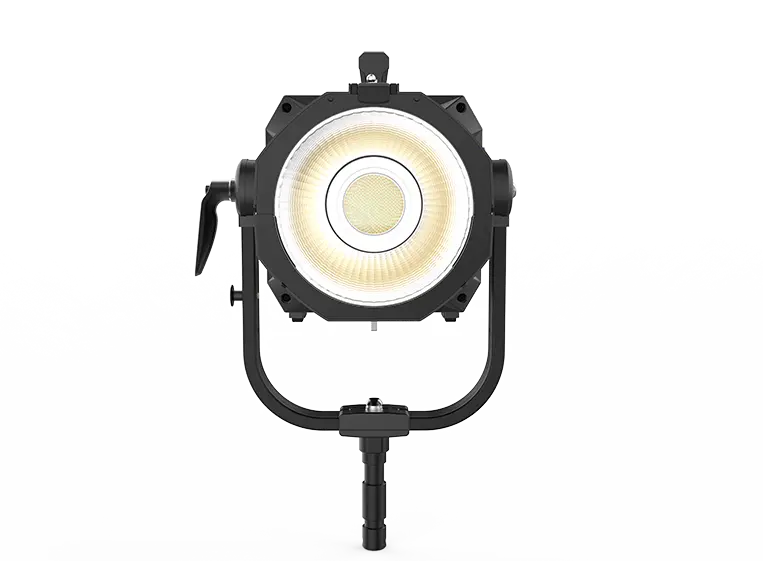

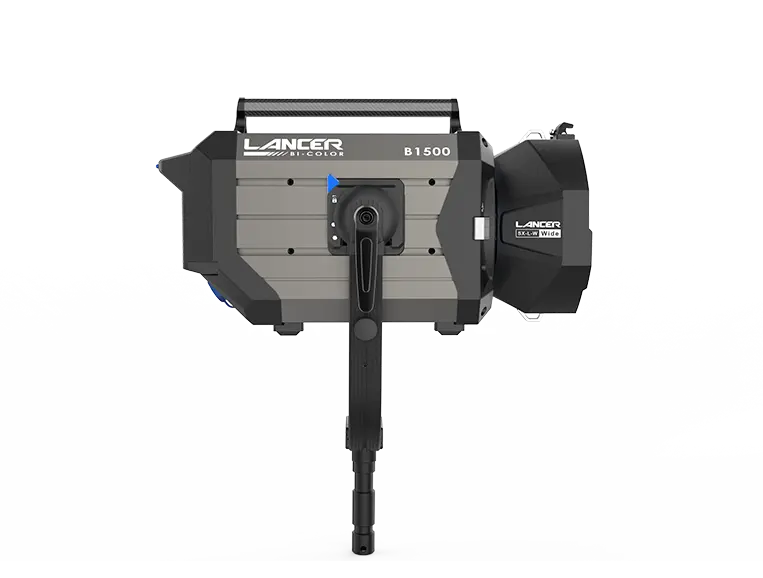

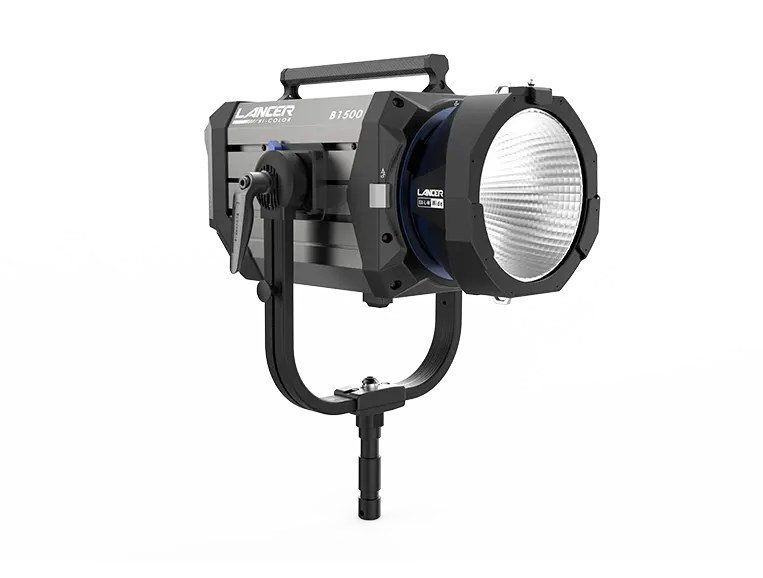

Lancer B1500 LED Light Features
Unique and easy-use operation panel
Benefiting from novel UI design, sophisticated interface layout and the simulation of 10 scenarios, such as paparazzo, lightning, clouds, broken light bulbs, TV, etc., according to the use habits and experience, the users can adjust luminous frequency and brightness and control the LED light conveniently to achieve colorful application according to their needs.
Multiple dimming curves usable freely
Five dimming curves, including linear/S-curve/exponential/logarithmic /TV, are available for the lighting engineers to achieve convenient and efficient dimming.
Multiple light effects and customized creativity
Ten light effects, including paparazzo, lightning, cloud, broken light bulb, TV sets, candlelight, fire, firework, explosion and welding,
are provided, and their parameters can be adjusted on the lamp and APP to easily change the light effects for scenario simulation
and assistance in creative production.
Weather protection
Weather protection is provided for LANCER series spotlights and their power supply by the novel and unique waterproof structure with high-efficiency water drainage and diversion ability, sophisticated external packing technology and the all-around protection of internal
core components, so that the spotlights and their power supply have all-weather protection capability, and can be used to complete video production in harsh environment.
Standard configuration
01* lamp, 01* power box, 01*5m power cable, 01*5m connection cable, 01*COB protection cover, 01* case,01*45° standard reflector,
01*35 circular pipe clamp, 01* manual (with 01*DMX channel table) .

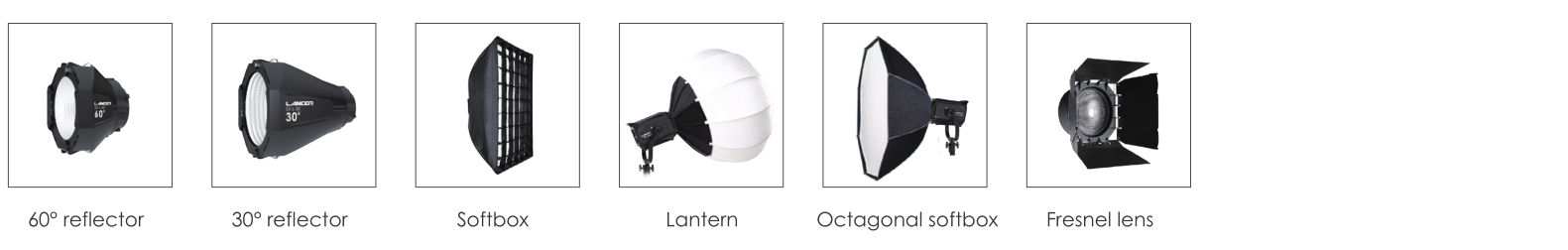

Optional
Lancer B1500 LED Light Specifications
Model | Lancer B1500 |
Rated power | Max.1500w |
Input coltage | AC 100-240V 50/60Hz |
CRI | CRI>97,TLCI>97 |
Color temperature | 2700K-6500K |
Dimming range | 0%-100%,accuracy 0.1% adjustable |
Control mode | On-board control, CRMX, APP, wired DMX, wireless DMX |
Dimming mode | Linear/S-curve/exponential/logarithmic/TV |
Light effects | 10 |
Dimension | Lamp(Yoke not included)394*231*252mm; Power supply: 170*130*302mm |
Weight | Lamp: 13.8kg Power supply: 2.7kg |
Illumination | ||||||
Color temperature | 3200K | 5600K | ||||
Distance | 3m | 5m | 7m | 3m | 5m | 7m |
Bare lamp | 5200 lux | 2080 lux | 1250 lux | 6180 lux | 2520 lux | 1430lux |
With standard reflector | 23200 lux | 8460 lux | 4320 lux | 28600 lux | 10100 lux | 5220 lux |
