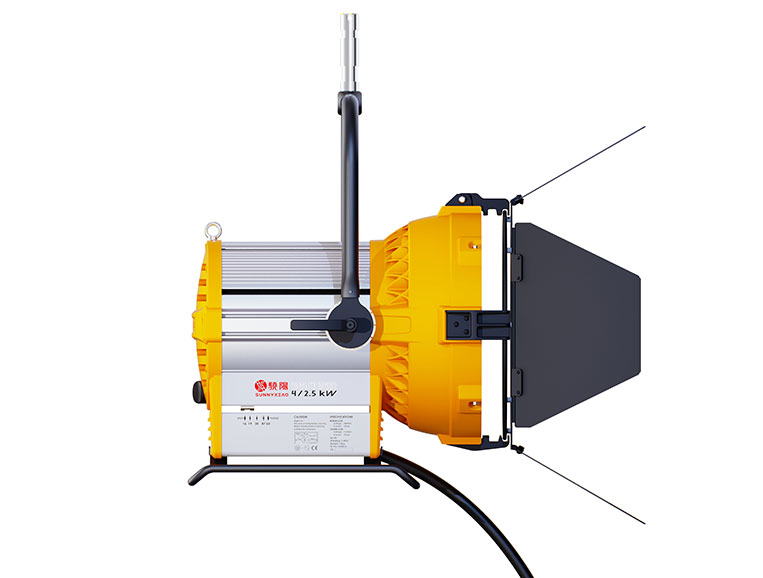

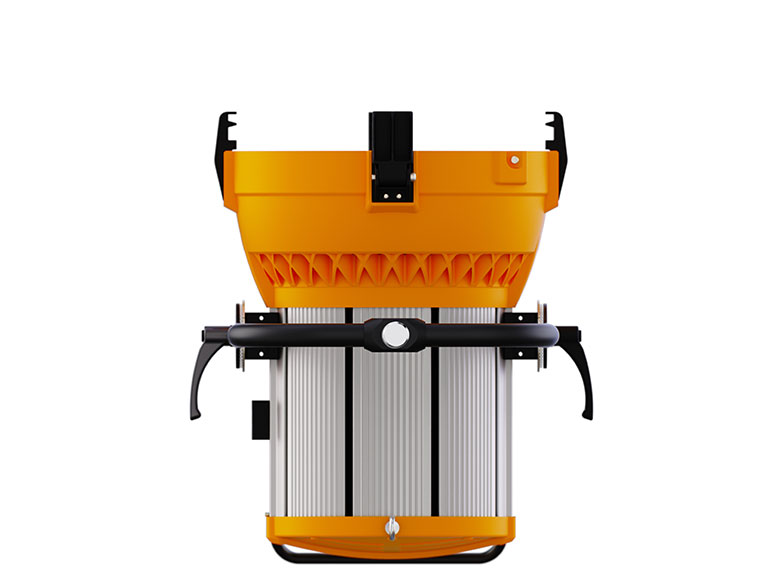

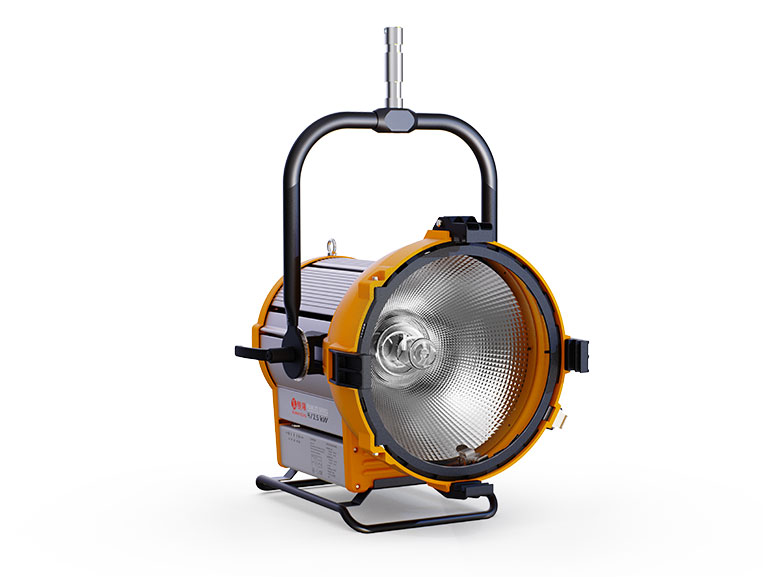

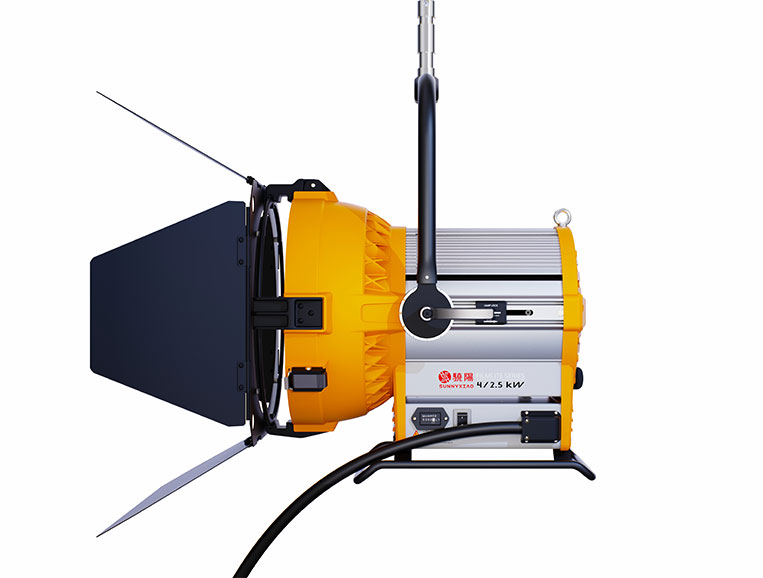

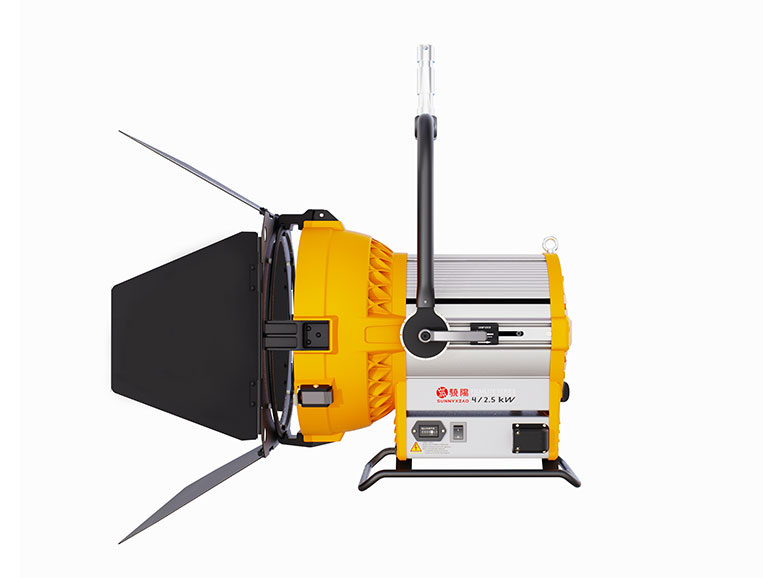

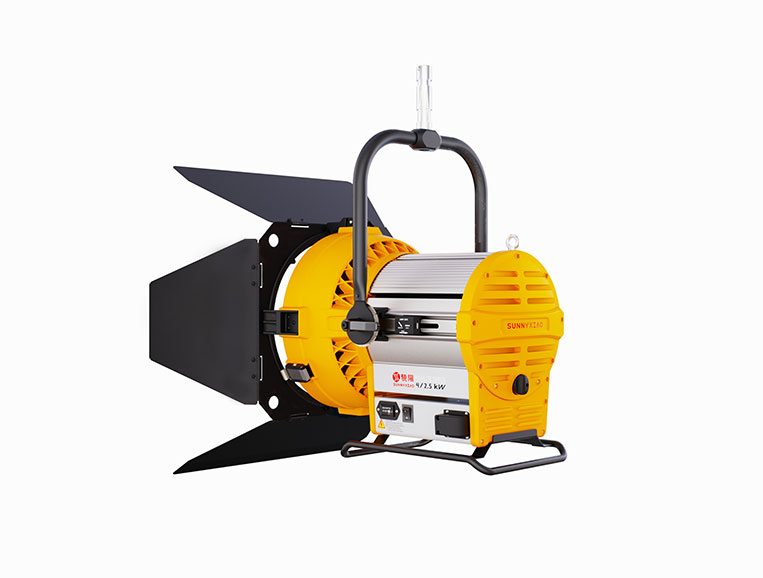

Specification of HMI 4000 High-speed Flim Light
| Max. Surface Temp | 160 ºC |
| Max. Ambient Temp | 45 ºC |
| IP Rating | IP23 |
| Ave. Max. Life Span | 500 hours |
| Lamp Type | HMI 4.0kW SE/HMI 2.5kW SE |
| Lamp Holder | G38 |
| Nominal Color Temp | 5600K |
| Color Rendering Index | Ra>90 |
| Output Half Peak Angle | 16°-60° |
| UV Protection Glass Filter | Ø300mm |
| Mounting | Ø28mm Spigot |
| Operating Range | +45º ~ 0º ~ -45º |
| Safe Distances | 5m to illuminated surface / 1m around the luminaire |
| Power | 4,000W |
| Lamp Bulb Voltage | 200V / 115V |

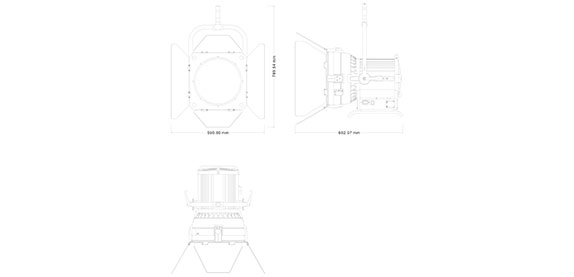

| Dimensions (W*D*H) | 374mm x473mm x 608mm |
| Net Weight | 18.0kg |
| Model No | FILMLITE HMI 4000 |
| Part No | FLHML4 |

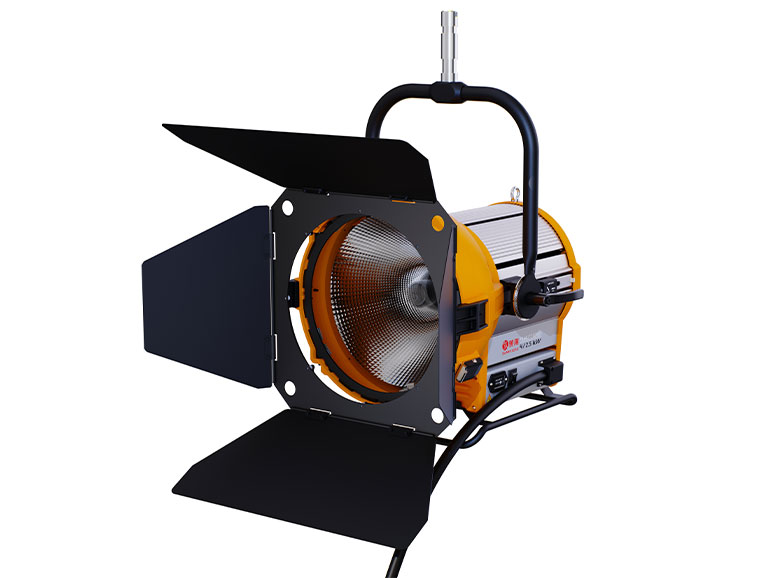

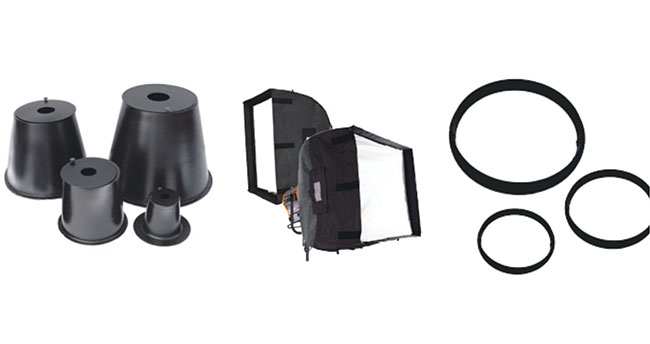

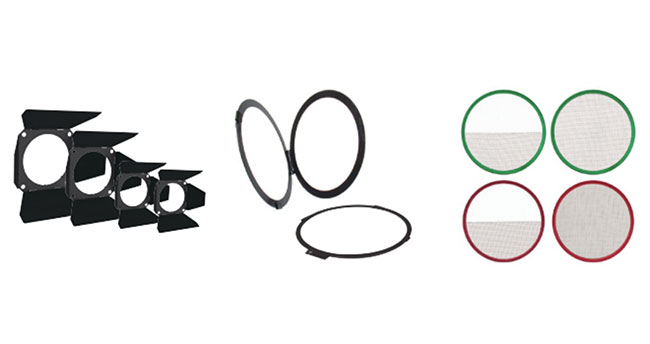

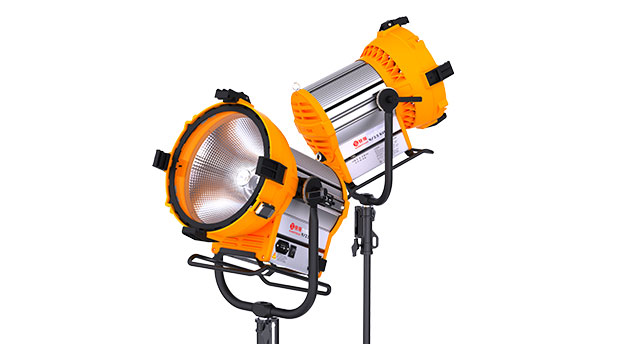

| Accessories (optional) | 4-leaf barndoor / Mobile / fixed stands |
| Luminous Flux | 380000lm / 220000lm |
| Power Input | 4000W, square wave 200V, 100Hz / 2000W, square wave 115V, 100Hz |
| Startup | Hot Startup |
| Ignition voltage | >40KV |
| Ignition Time | < 3 seconds |
| Storage Temperature | -55℃ to +60℃ |
| Operating Temperature | -20℃ to +60℃ |
| Packing Size (WxDxH) | 690mm x 510mm x 550mm |
| 1. Operation of this product outside the parameter ranges given may cause permanent damage. 2. Specifications are not guaranteed over all operable conditions. | |
Applications of HMI 4000 High-speed Flim Light
Automobile - Lighting for high-speed video (e. g. crush tests)
Railway vehicles - Lighting for high-speed video (e. g. crush tests)
Military - Lighting for high-speed video (e. g. crush tests)
Film & television - Lighting for on-location shooting
Product Features of HMI 4000 High-speed Flim Light
High luminous efficiency: 380000 lm/220000lm for the hydrargyrum medium arc iodide lamp
Steady Output: Even, steady, and Flicker-less output within the adjustable focal length
Adjustable focal length: Adaptable to various test distance conditions
Patented timing-control ignitor: Fast startup, short setting time

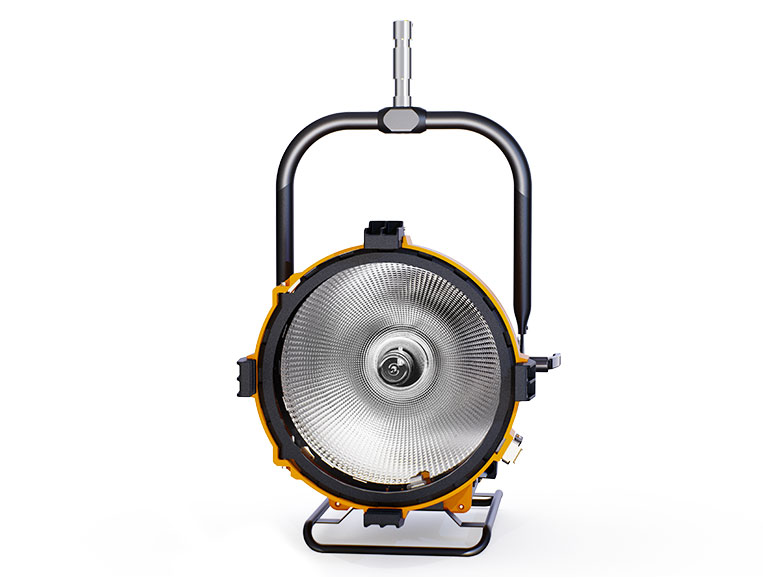

Patented polyhedral mirror reflector: Brilliant enhancement of uniformity and optical performance

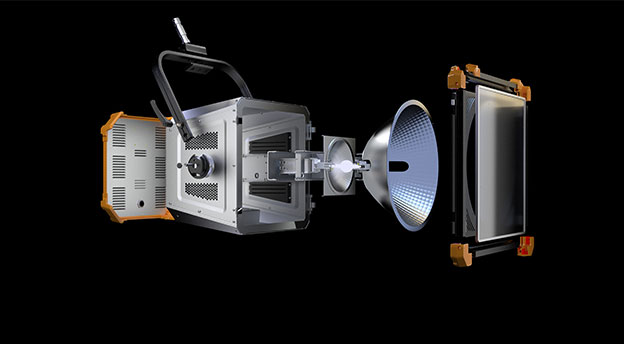

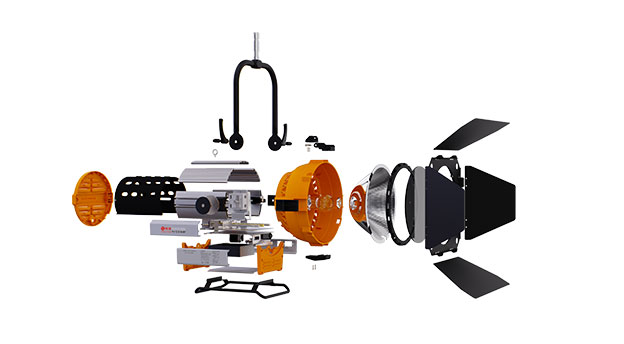

Modular design plus ergonomics: Facilitates the O&M by users
Robust & endurable: High-strength alloy housing, fit for harsh environment
