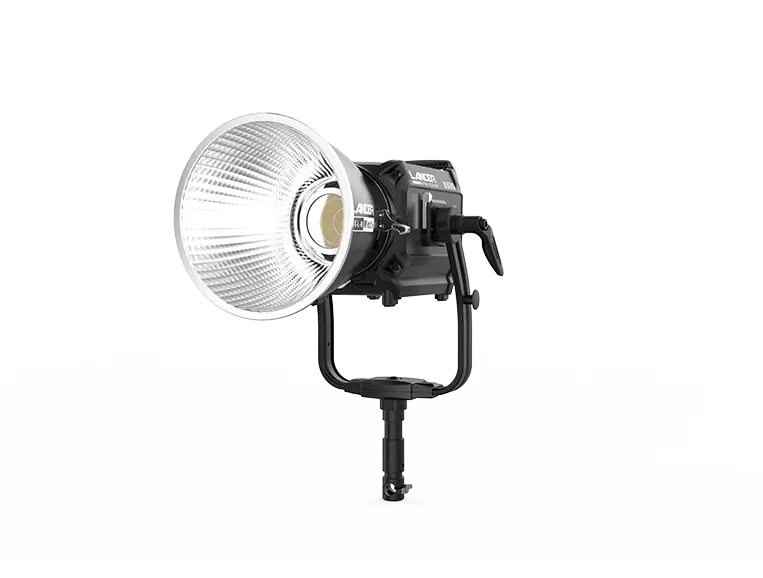

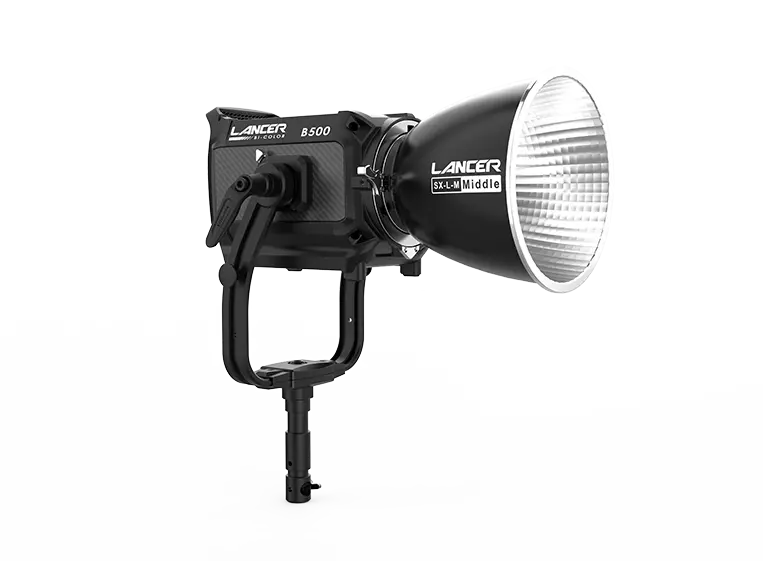

Lancer B500 LED Light Features
Super-bright, bi-color and stable
LANCER series LED lights feature customized LED lamp beads to maintain high brightness and ensure the accurate color temperature; its CCT ranges from 2700K to 6500K, which can achieve accurate adjustment of cold and warm colors; LANCER LED lights have high color rendering and provide higher quality white light, so the light generated by LANCER LED lights can be more in line with the surrounding environment and more natural.
Power supply control
Due to the separation of the lamp from the power supply, LANCER series has high heat dispersion performance. The integrated perfect
power supply management system is embedded with a high-quality high-power all-weather waterproof power supply case, and provided
with an aluminum profile structure to ensure heat dispersion and waterproof property.
Efficient heat dissipation and super quiet effect
LANCER series is equipped with an excellent temperature control system having a new heat radiation structure developed based on new a heat dissipation concept. With the structure consisting of heat tubes, fins, and vapor chamber, and the unique air inlet and outlet design, the heat conduction and heat dissipation efficiencies of LANCER LED lights are greatly improved, which fully ensures luminous efficiency, color accuracy and stability of LED during long-time operation. The customized noiseless fan is designed for stringently controlling the lamp noise and ensuring high-quality sound effects on set.
Weather protection is provided for LANCER series spotlights and their power supply by the novel and unique waterproof structure with high-efficiency water drainage and diversion ability, sophisticated external packing technology and the all-around protection of internal
core components, so that the spotlights and their power supply have all-weather protection capability, and can be used to complete video production in harsh environment.
01* lamp, 01* power box, 01*5m power cable, 01*5m connection cable, 01*COB protection cover, 01* case，01*45° standard reflector,
01*35 circular pipe clamp, 01* manual (with 01*DMX channel table) .
Lancer B500 LED Light Specifications
|Input coltage||DC 22-36V, AC 100-240V 50/60Hz|
|Dimming range||0%-100%,accuracy 0.1% adjustable|
|Control mode||Lamp control, CRMX, APP, wired DMX， wireless DMX|
|Dimension||Lamp（excluding support）: 290*168*184mm; Power supply: 117*128*282mm|
|Weight||Lamp: 2.8kg Power supply: 1.6kg|
|Bare lamp||10800 lux||2750 lux||1430 lux||12400 lux||3200 lux||1570 lux|
|With standard reflector||109800 lux||24800 lux||10500 lux||132000 lux||28500 lux||12400 lux|
